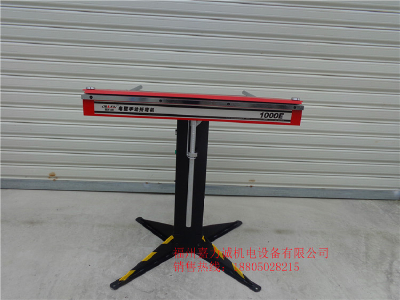

Electromagnetic  Sheet Metal Bending Machines 1000E

Electromagnetic Sheet Metal Bending Machines 1000E

  • Min.Order Quantity: 1 Set
  • Supply Ability: 20 Sets per Month
  • Port: Fuzhou Port ,China
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2016-04-11
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  0.15
  • Place of Origin:  Fuzhou
  • Brand Name:  JALCH
  • Model Number:  1000E
  • Weight: 110.000 kg

Nominal Capacity

Model 1000E: 625 X 1.6 mm


Clamping Force

Total force with standard full-length clamp-bar:

Model 1000E: 4.5 Tonne


Electrical: 1 Phase, 220/240V ,10A

Duty cycle: 30%

Protection: Thermal cut-out, 70°


  • Size:  0.15
  • Place of Origin:  Fuzhou
  • Brand Name:  JALCH
  • Model Number:  1000E
  • Weight: 110.000 kg
MATERIALTHICKNESSLIP WIDTH(minimum)BEND RADIUS(typical)

Midl steel

(250/320 Mpa)

1.6 mm30 mm*3.5 mm

1.2 mm

15 mm2.2 mm
1.0 mm10 mm1.5 mm

Aluminium

Grade 5005 H34

(140/160 MPa)

1.6 mm30 mm*1.8 mm
1.2 mm15 mm1.2 mm
1.0 mm10 mm1.0 mm

Stainless Steel

Grades 304,316

(210/600 MPa)

1.0 mm30 mm*3.5 mm
0.9 mm15 mm3.0 mm
0.8 mm10 mm1.8 mm
